LESU new product launch
1/14 Hydraulic Wheel Excavator Yellow Version
“Hydraulic wheel excavator yellow version”
01
Let me introduce this new excavator to you. The RTR version not only has the original purple version, but also a new color "yellow version"!
This is an excavator with a novel color. Don't ignore its performance just because of its good appearance!
02
Detailed introduction picture display
Its body is made of 95% metal and 5% plastic, and the entire machine uses hydraulic digging arms for all-copper metal oil pipes.
Equipped with a simulated electronic display, one-button switch of the entire machine circuit, the entire machine is equipped with a lighting system, and can rotate 360 degrees without blind spots! The movements are smooth and smooth, and the precision hydraulic system makes the movements more delicate and the appearance more cool!
03
Product configuration information
RcLesu all-metal CNC-made RD-A0006 wheeled hydraulic excavator
This excavator has a bulk original color version, which requires players to spray and assemble. There is also an RTR assembled spray version with complete electronic equipment, including lights, but not batteries, remote controls and sound groups. The original car does not include quick release,
The picture is only for shooting. Players who need quick release can shoot and send them together
Another masterpiece of LESU model! The wheeled excavator is on the stage! High-quality rubber tires, CNC front and rear double wheel hub design, light and stable. Flowing between roads and construction sites! It has the flexible walking operation of a car, and at the same time has the deterrent power of heavy machinery of an excavator. With 4 powerful hydraulic support feet, it is stable and reliable, and the working process is more efficient. The combination of rigidity and flexibility is another breakthrough in the technology of the model industry, and another new favorite of players

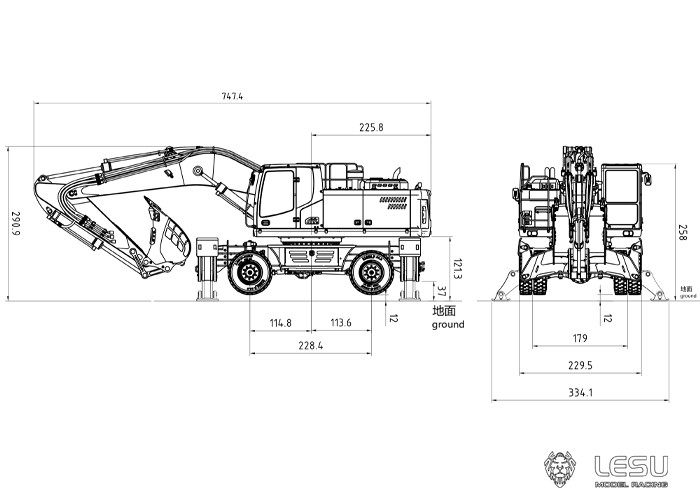

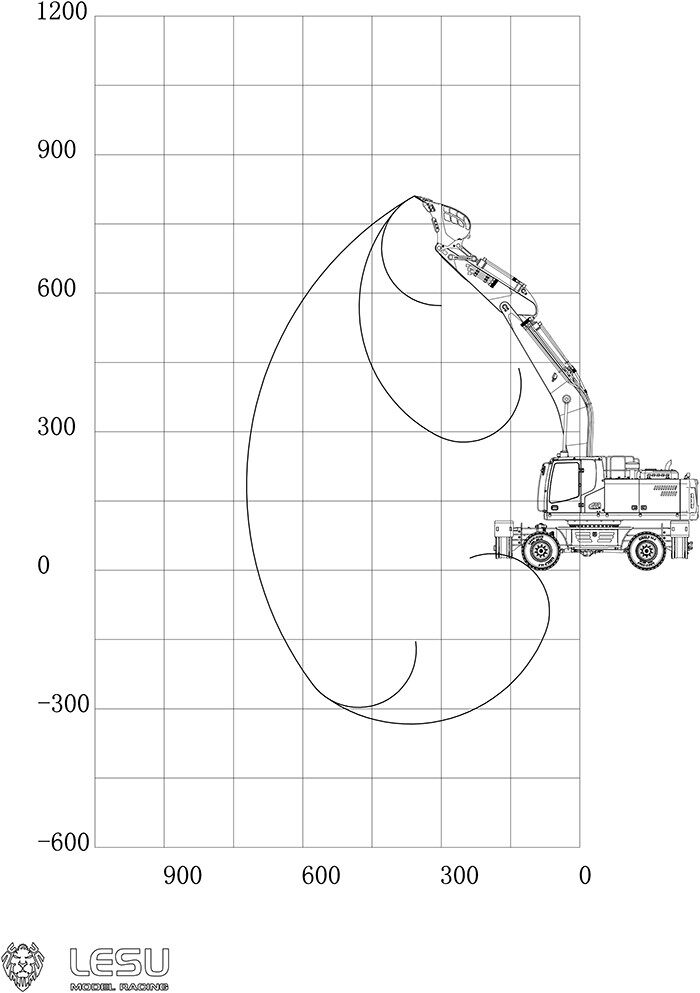

Size and working radius diagram：
The chassis is made of hard and strong stainless steel welded together, the shell is made of precision CNC, and the interior of the cab is molded high-quality plastic.
The net weight of the vehicle is about 19 kg. Packing size: 747*334*290, L*W*H (MM)
Power supply voltage: 7.4-11.1V Use 2S, 3S lithium batteries, it is recommended to use 3S, which is more powerful! Equipped with a battery compartment with plenty of space, it is safer and neater.
ESC: 30A travel motor brushless ESC, 120A oil motor brushless ESC, 320A rotary motor brush ESC.
Hydraulic pump: LESU high-pressure pump, rated pressure 8 MPa, equipped with overflow valve. The pressure can be adjusted according to the needs of the vehicle. Flow rate 400ml/min
Two-way reversing valve (front and rear hydraulic lifting support feet, one channel in front and one channel in the back)
Lock valve (controls the front axle swing cylinder, switches control the flow and closes the flow of hydraulic oil
Oil slip ring (can smoothly supply oil to the support feet for normal operation without hindering the movement of the upper part of the excavator
Independent innovative hydraulic station (oil pump, motor, radiator, oil valve, filter, pressure gauge, oil tank overflow valve, etc.)
Precision cylinder (CNC precision production, laser welding, practical and beautiful)
Suggested attention: wheel excavators require more remote control channels, including 6 reversing valves for the mechanical part of the vehicle, 1 rotation, 1 oil pump, 1 walking part, 1 steering, 1 lock differential, 1 locking valve, 2 front and rear feet, and 1 light.
It is recommended to buy remote control manufacturers with multiple channels or channels that can be expanded as much as possible.
Rotary motor: 360-degree rotation, the rotation system has a self-locking function, making the operation more playable
Metal power bridge: front and rear axles with differential locks, full power, steel gears, more durable and playable, strong pressure bearing capacity)
Wheel-type front axle hydraulic swing bridge assembly, steering, suspension, shock absorption in one, a combination of aesthetics and mechanical engineering.
The wheel excavator is equipped with a light group, including low beam lights, front and rear turn signals, reversing lights, large arm spotlights, etc.! It also leaves more imagination for the players' infinite imagination and creativity!

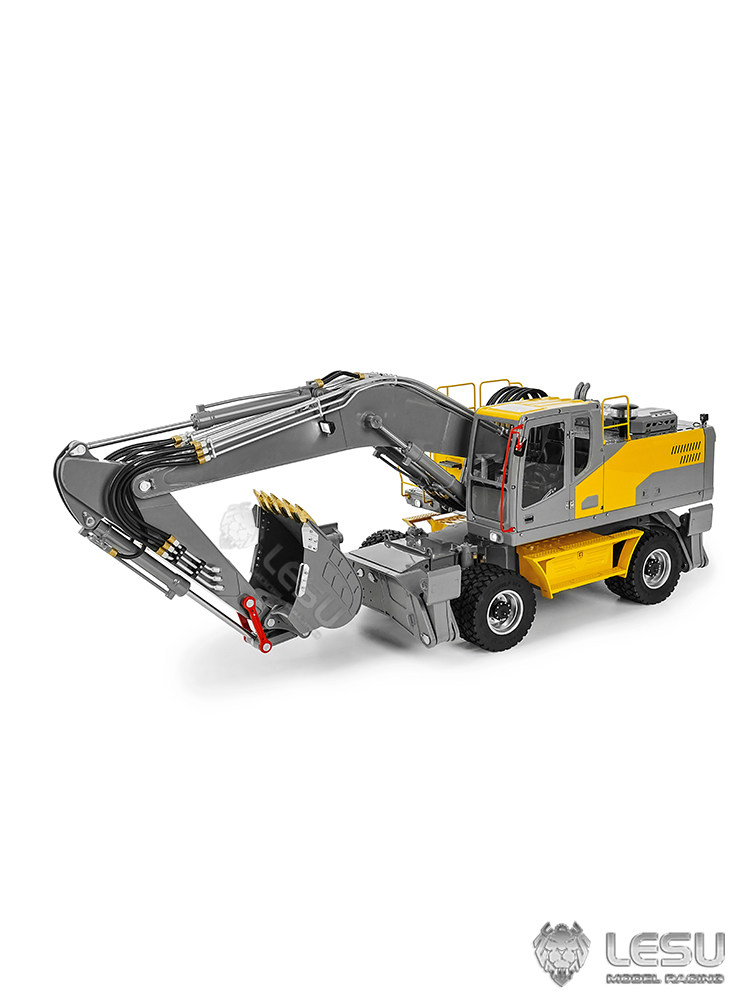

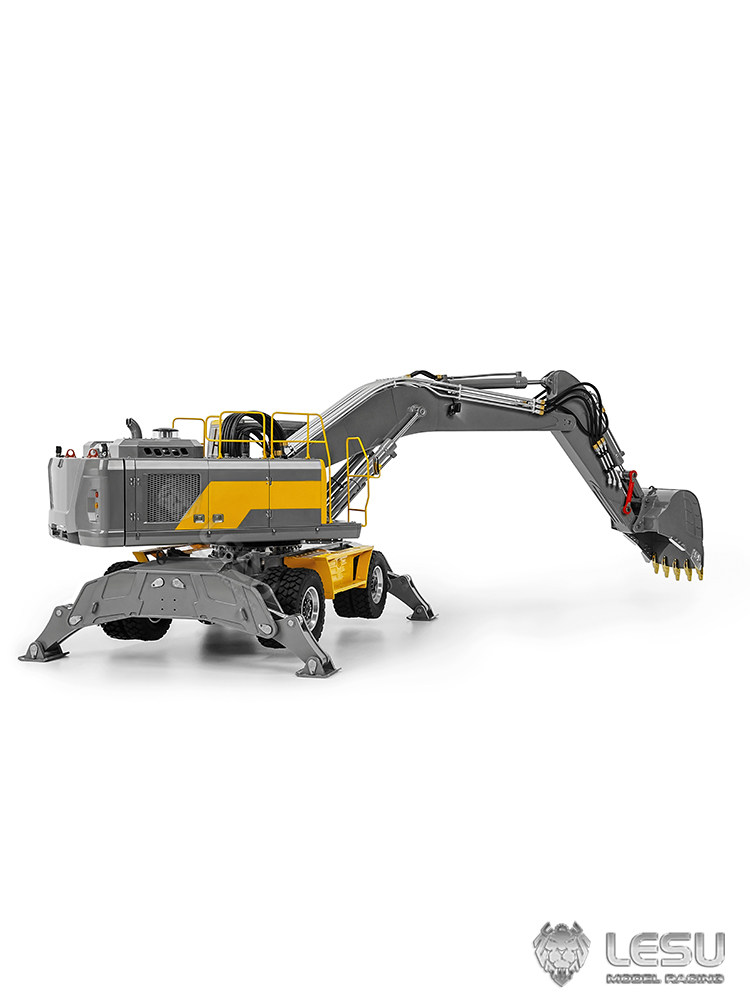

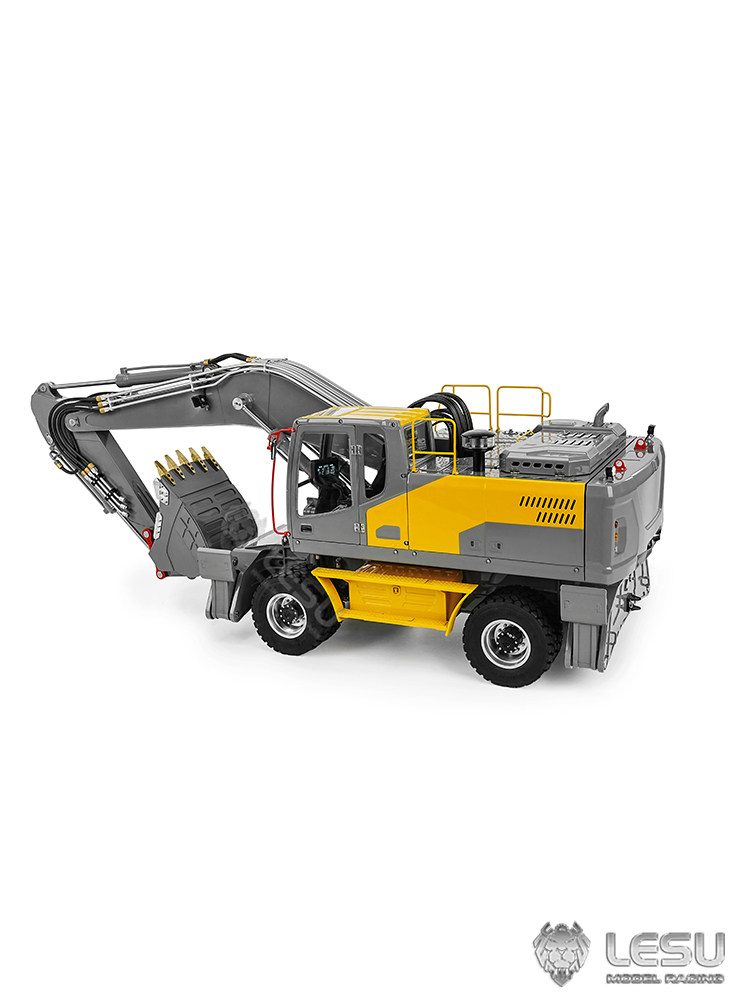

Product real shot:
