1/14Y-1506-B aircraft roof F frame hydraulic system 3348 lifting accessories

Aircraft roof F frame hydraulic system

Working pressure: The maximum working pressure is 25kg/cm2, and the stable pressure is about 20kg/cm2

Accessory model: Y-1506

Suitable models: 1/14 Tamiya 3348 dump truck modification and personal DIY modification vehicle

The telescopic amount of the F frame on the top of the aircraft is 180mm

Note: The outlet above the oil cylinder is the exhaust port. There is no need to connect the oil pipe and do not block it.

The hydraulic system comes standard with an 82mm fuel tank, brushless motor hydraulic pump, and brushless ESC.

This product is protected by a patent

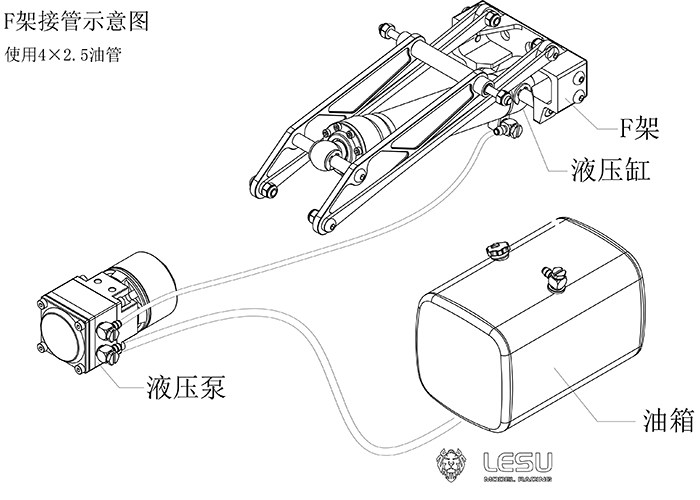

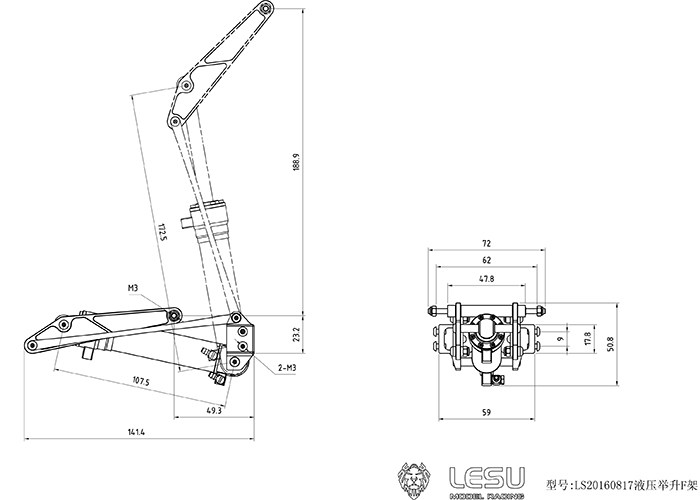

Product size drawing and installation oil pipe drawing:
