LESU Hydraulic Machinery Model Parts Y-1571-B Hydraulic Pump Simulated Oil Pump -complete truck-PRODUCTS-Manufacturer simulation models

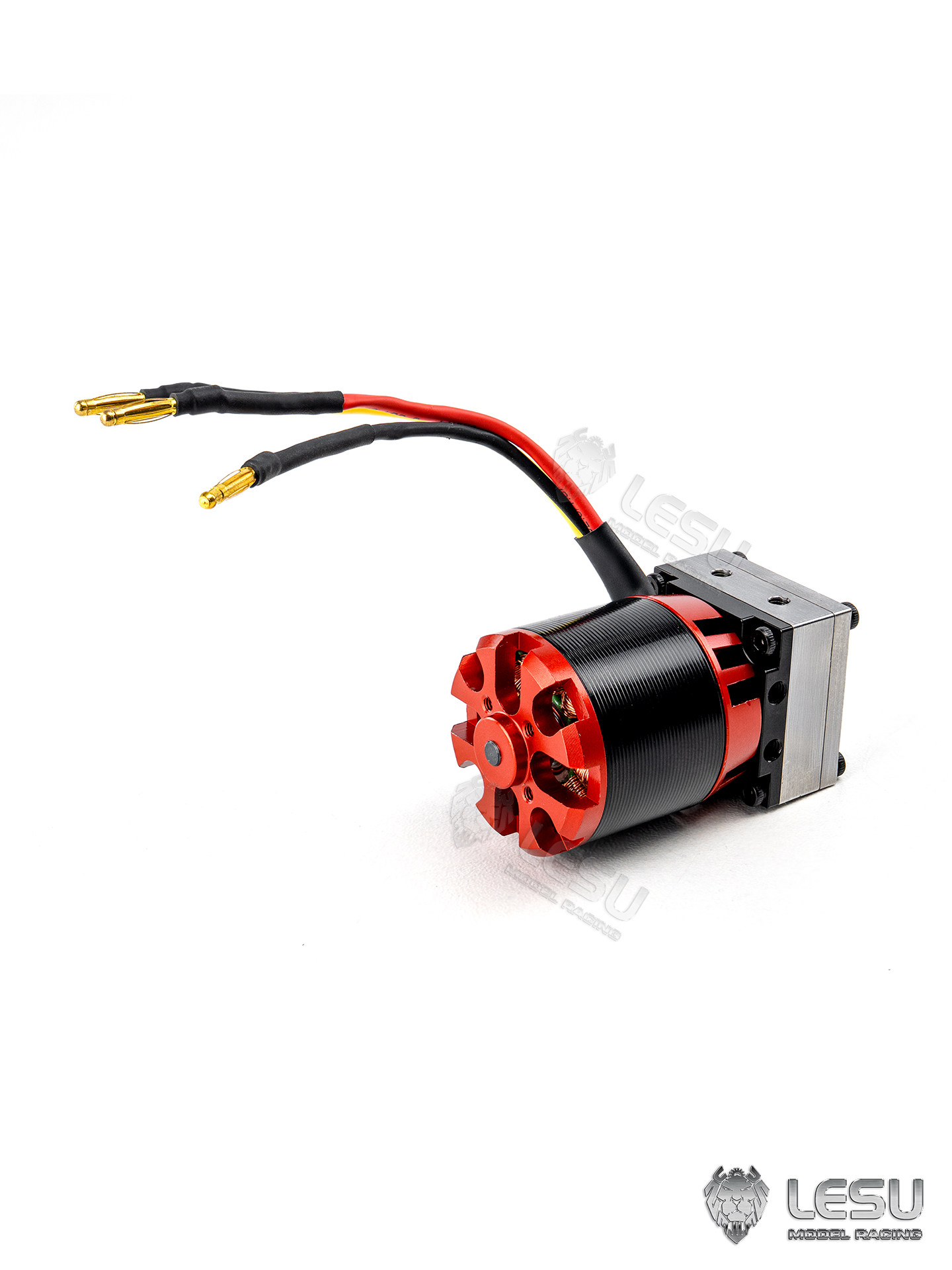

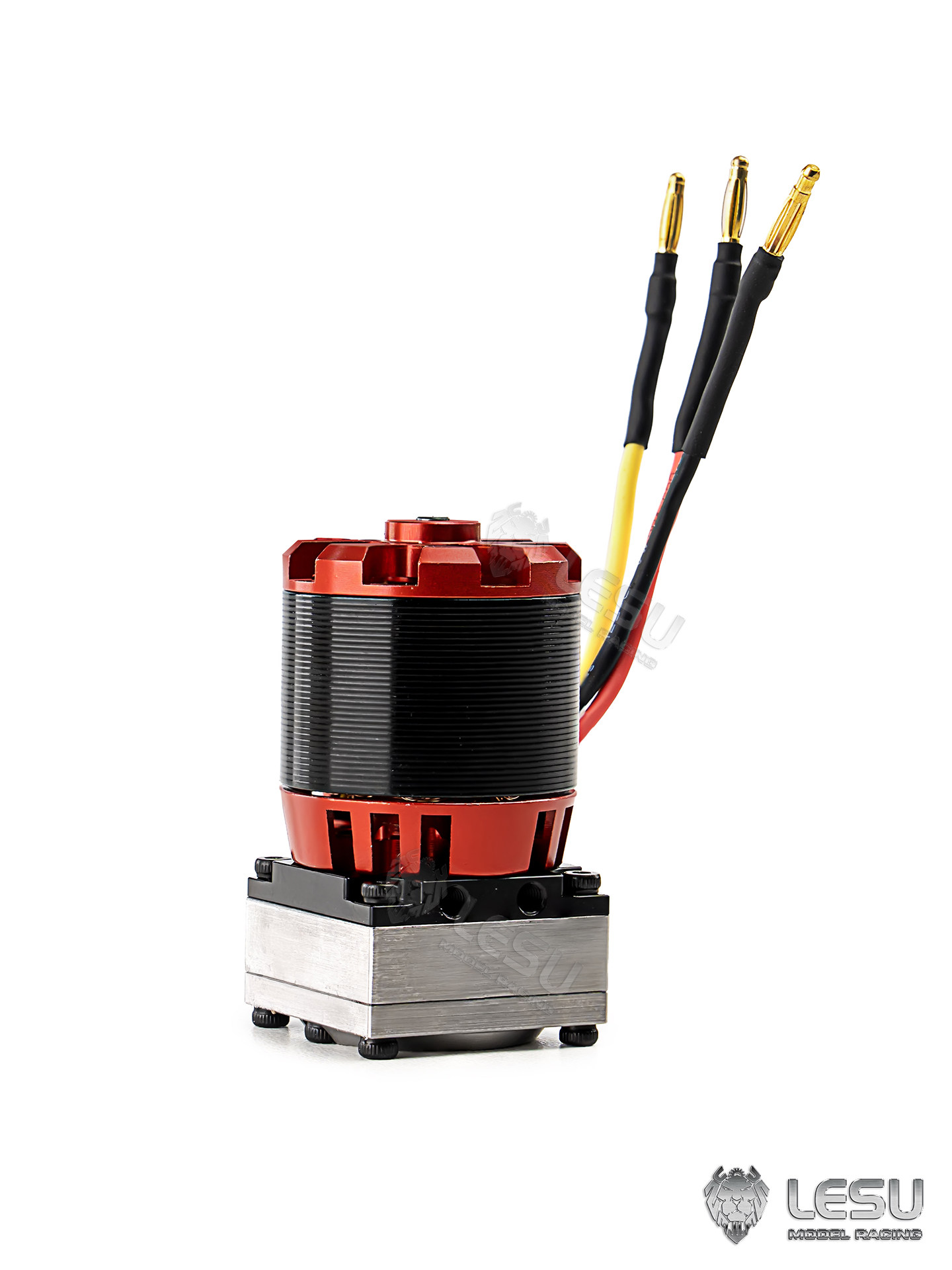

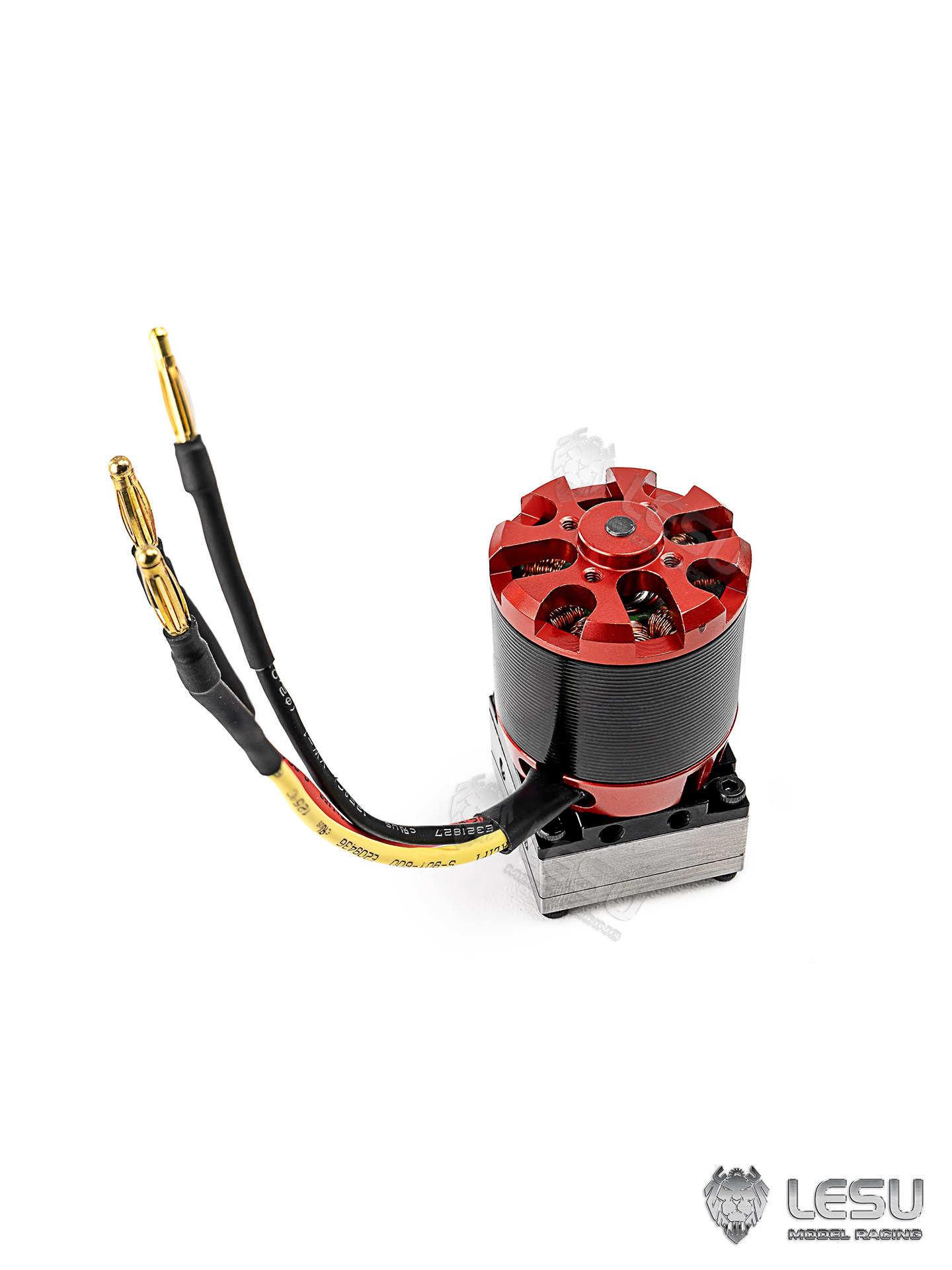

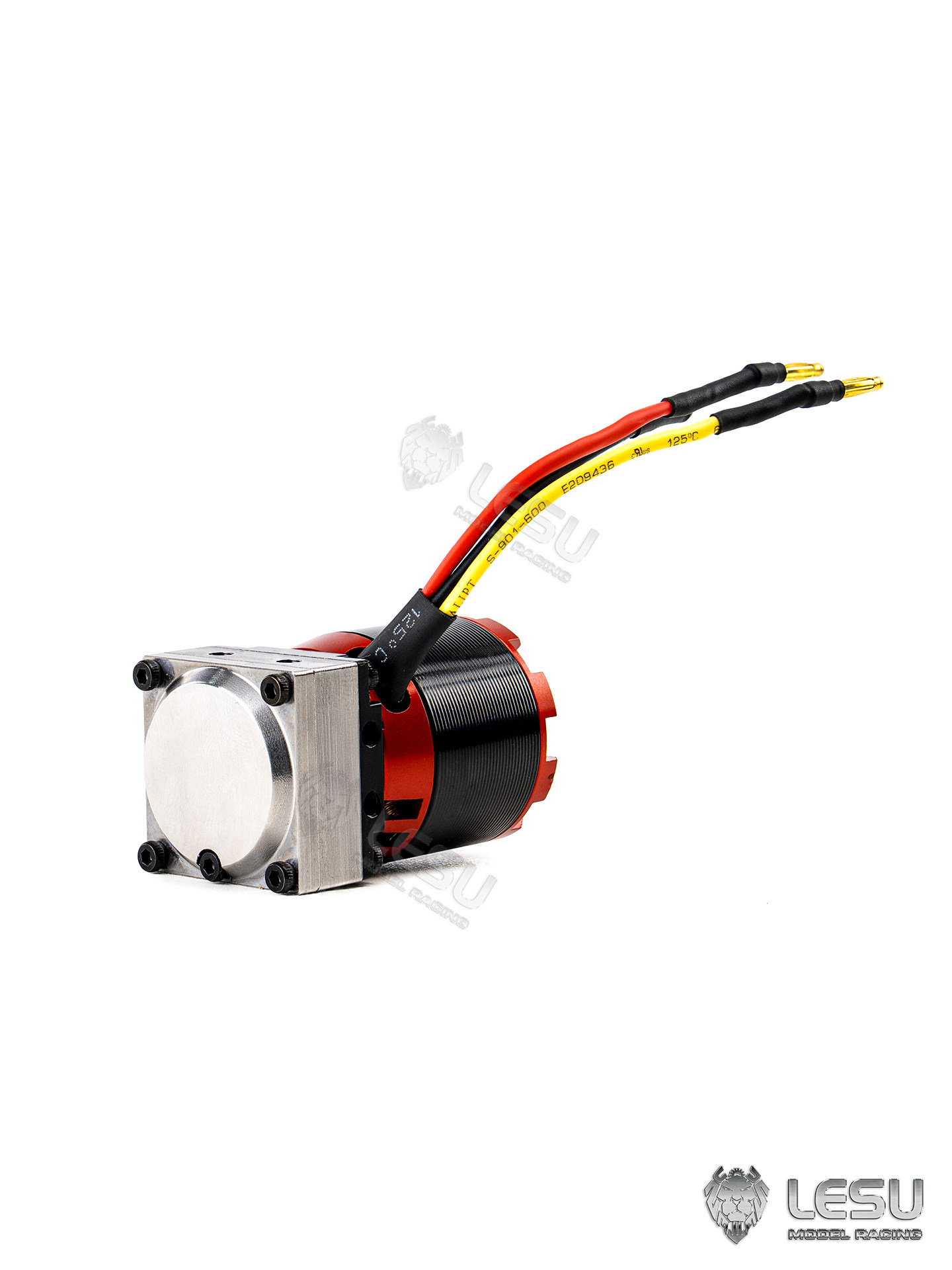

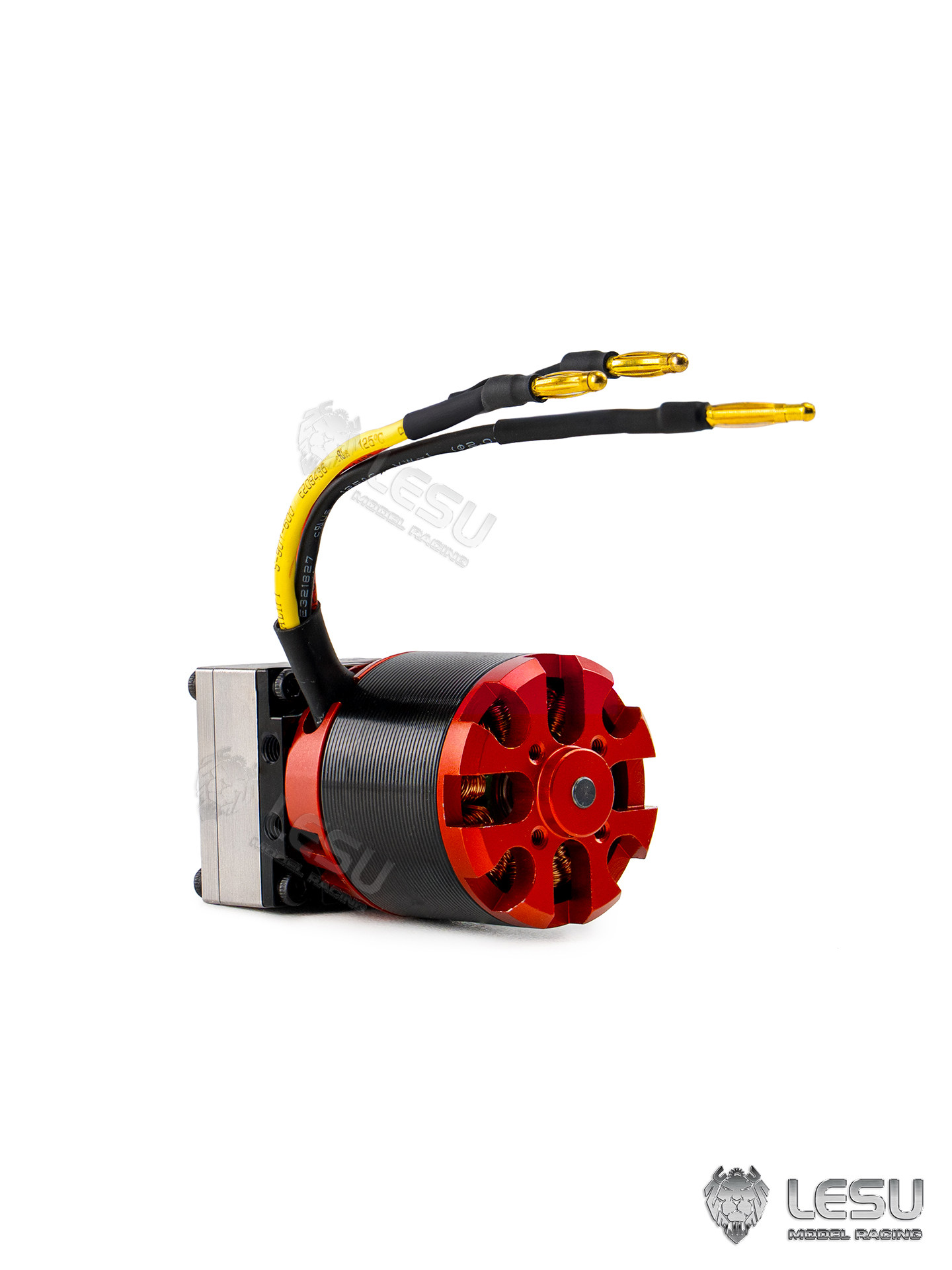

1/14 Scale Hydraulic Model High-Pressure Self-unloading Hydraulic Pump

Note: The hydraulic circuit with an overflow valve has an oil return function. Even if the oil cylinder reaches the top and the oil supply is not closed in time, there is no risk of the oil pipe bursting (it is not recommended to keep the oil supply on for a long time even with the overflow valve installed). The pump pressure is adjustable for convenient operation and high playability.

Applicable Models: 1/14, 1/16 DIY modified vehicles, mud trucks, and other personal DIY modified vehicles

Model No.: Y-1571-B

This pump does not come with an ESC (Electronic Speed Controller), which needs to be purchased separately. Brushless ESCs rated 20A or above are recommended.

Recommended ESC: 20A or higher brushless ESC

Material: 45 Steel, Aluminum Alloy

Rated Voltage: 7.4V-11.1V (2S-3S LiPo)

Rated Pressure: 3MPa

Max Flow Rate: 100ml/min

Operating Current: 10A

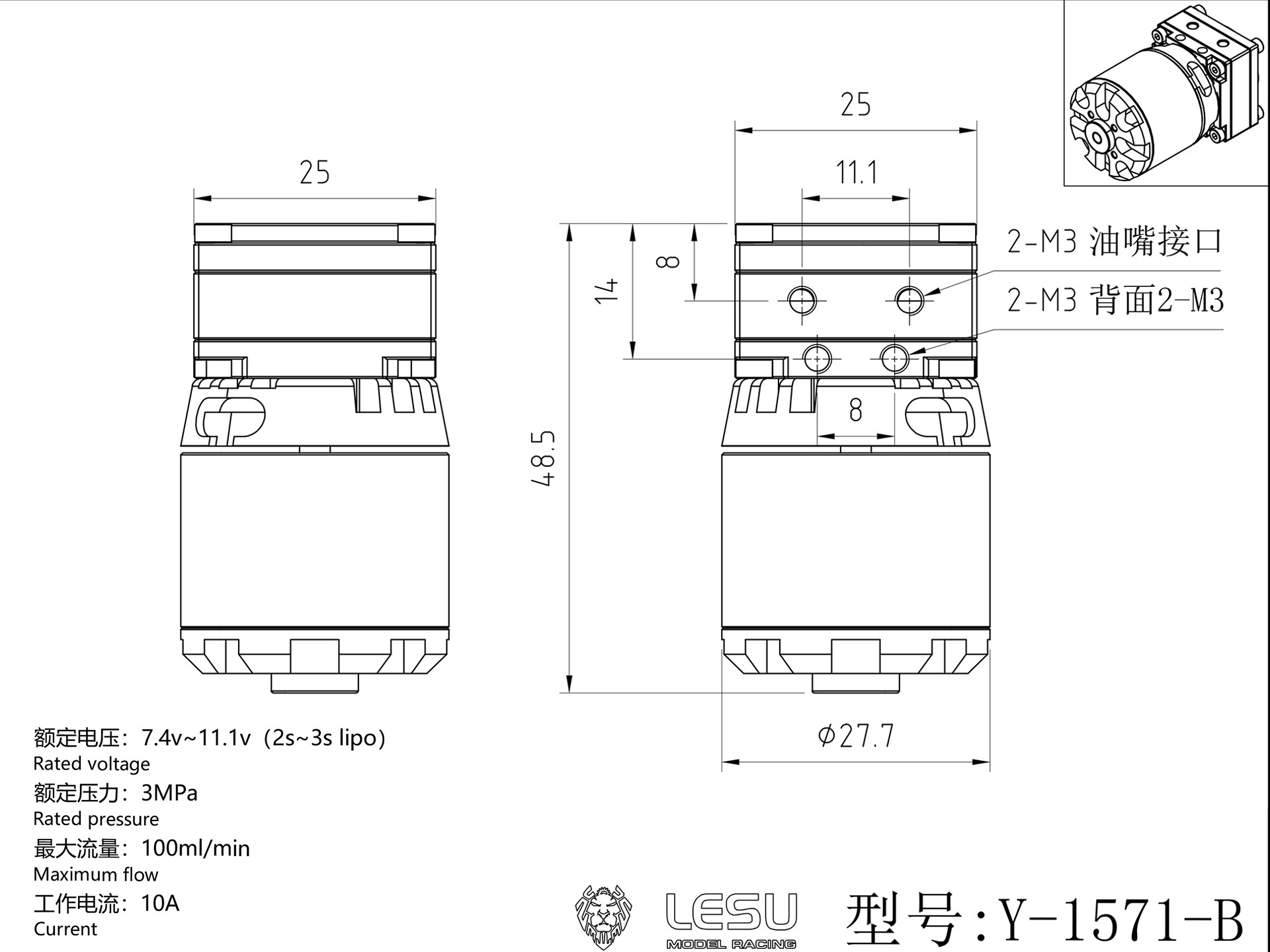

Product Dimension Drawing
